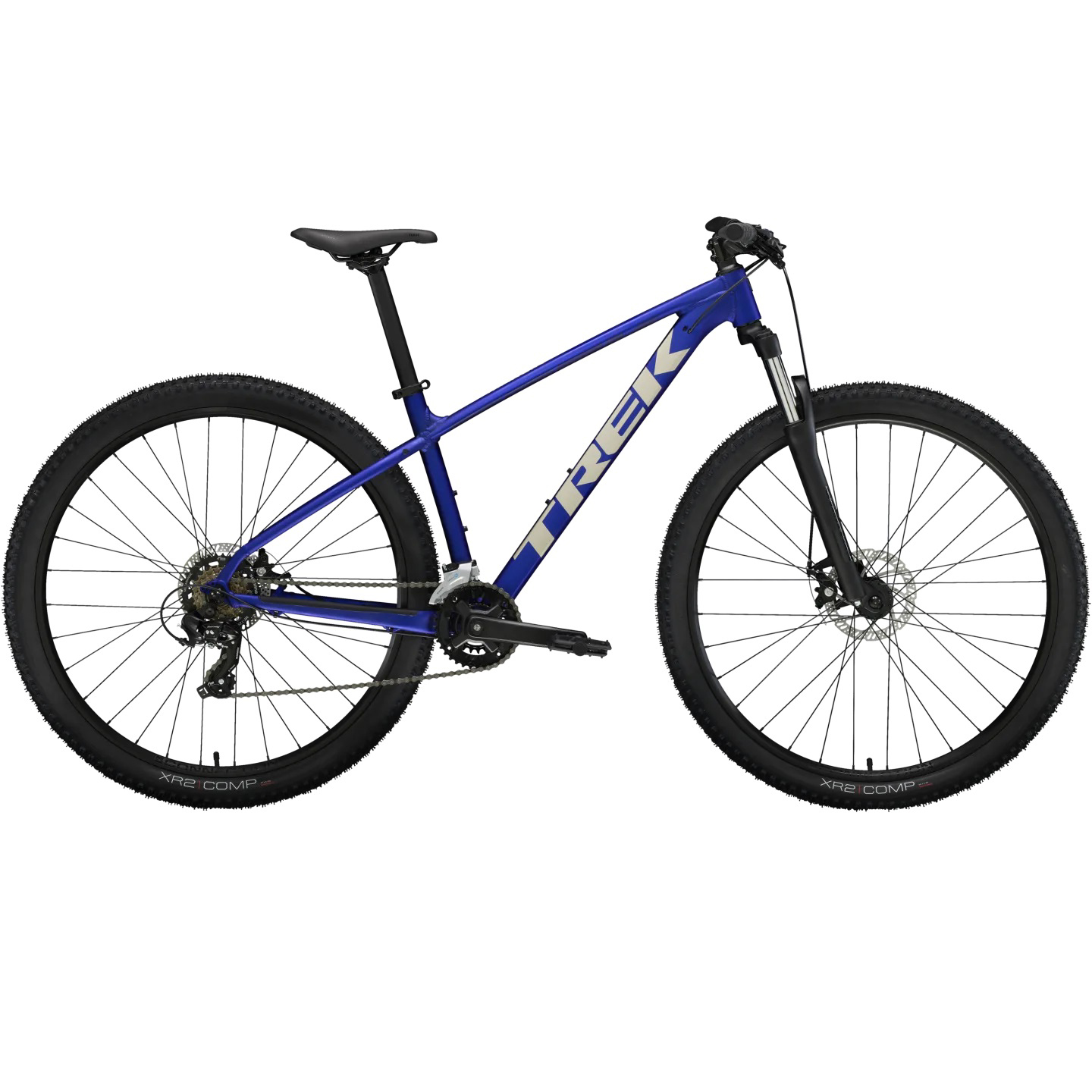

Trek Marlin 4 Gen 2 Large (Blue)

 SHIPPING NOT AVAILABLE ON THIS ITEM – STORE PICKUP ONLY

    Why you’ll love it

1. It’s a real mountain bike that’s also perfectly suited to daily commutes, rides around campus, or just getting from A to B on any surface
2. Smaller frame sizes (XXS, XS, and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently.
3. Marlin models in XXS through S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount
4. Rack and kickstand mounts make it easy to accessorize, so your mountain bike can double as a rugged commuter
5. Like every model in the Marlin family, it’s backed by Trek’s lifetime warranty.

   *Frame	Size: XS , S Alpha Silver Aluminum, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
   	Size: M , ML , L , XL Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
   *Fork	Size: XS SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5” wheel, 100mm QR, 80mm travel
   	Size: S SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5” wheel, 100mm QR, 100mm travel
   	Size: M , ML , L , XL SR Suntour XCE 28, coil spring, preload, 46mm offset for 29” wheel, 100mm QR, 100mm travel
   Max compatible fork travel	100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown)

   Wheels

   Hub front	Formula DC-20, alloy, 6-bolt, 5x100mm QR
   Hub rear	Formula DC-31, alloy, 6-bolt, 6/7/8 speed freewheel, 135x5mm QR
   Skewer rear	152x5mm QR
   Rim	Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
   Spokes	14g stainless steel, black
   *Tire	Size: XS , S Bontrager XR2 Comp, wire bead, 30 tpi, 27.5×2.20”
   	Size: M , ML , L , XL Bontrager XR2 Comp, wire bead, 30 tpi, 29×2.20”
   Max tire size	Frame: 29×2.20″ (XS & S: 27.5×2.40″), Fork: See manufacturer

   Drivetrain

   *Shifter	Size: XS , S , M , ML , L , XL Shimano EF500, 8 speed
   	Size: XS , S , M , ML , L , XL Shimano EF500, 7 speed
   Front derailleur	Shimano Altus M315, 34.9mm clamp, top swing, dual pull
   Rear derailleur	Shimano Tourney TY300
   *Crank	Size: XS , S , M ProWheel TM-CY10, 36/22, 170mm length
   	Size: ML , L , XL ProWheel TM-CY10, 36/22, 175mm length
   Bottom bracket	VP BC73, 73mm, threaded cartridge
   Cassette	Shimano TZ500, 14-34, 7 speed
   Chain	KMC Z7, 7 speed
   Pedal	VP-536 nylon platform
   Max chainring size	1x: See FAQ, 2x: 36T, 3x: 42T

   Components

   Saddle	Bontrager Verse Short, stainless steel rails
   *Seatpost	Size: XS , S Bontrager alloy, 31.6mm, 12mm offset, 330mm length
   	Size: M Bontrager alloy, 31.6mm, 12mm offset, 360mm length
   	Size: ML , L , XL Bontrager alloy, 31.6mm, 12mm offset, 400mm length
   *Handlebar	Size: XS , S Bontrager alloy, 31.8mm, 5mm rise, 690mm width
   	Size: M , ML , L , XL Bontrager alloy, 31.8mm, 15mm rise, 750mm width
   Grips	Bontrager XR Endurance Comp, lock-on
   *Stem	Size: XS , S Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
   	Size: M Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
   	Size: ML , L Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length
   	Size: XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 80mm length
   Headset	Semi-integrated, 1-1/8”
   *Brake	Size: XS , S , M , ML , L , XL Tektro MD-M280 mechanical disc
   	Size: XS , S , M , ML , L , XL Tektro MD-M281 mechanical disc
   	Size: XS , S , M , ML , L , XL Tektro MD-M280 mechanical disc, 160mm rotor
   	Size: XS , S , M , ML , L , XL Tektro MD-M281 mechanical disc, 160mm rotor
   *Brake rotor	Size: XS , S , M , ML , L , XL Tektro wave, 6-bolt, 160mm
   	Size: XS , S , M , ML Tektro, 6-bolt, 160mm
   Rotor size	Max brake rotor sizes – Frame: 180mm, min 160mm, Fork: see fork manufacturer

   Weight

   Weight	M – 14.60 kg / 32.19 lbs
   Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
